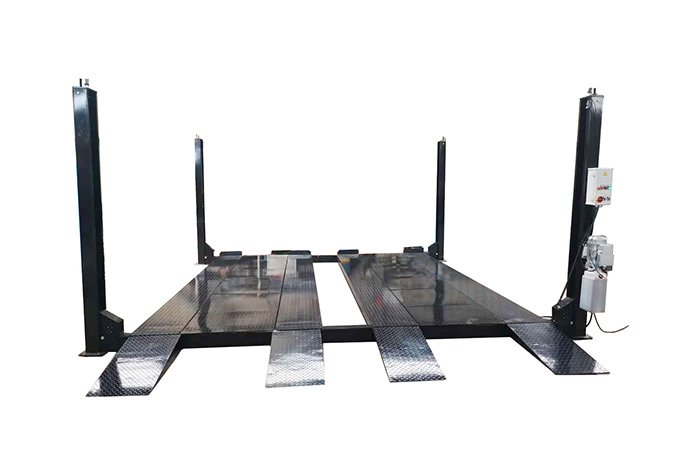

Four post car lift four cars - puzzle parking,parking lift,tower parking,shuttle parking,car parking,robot parking,Qingdao Maoyuan Metal Group Co., Ltd.

Features

1. Hydraulic cylinder driven, Wire rope lifting system

2. Simple installation, easy to maintain.

3. 4 post structure for 4 cars parking. 2 cars on top and 2 cars below.

4. Four points automatic safety locks ensure the safety.

5. Multilevel mechanical locks on the columns ensure the safety of operation.

6. Manual or Electrical release optional.

Model	PJS401	PJS402
Vehicle size	5000mm1850mm1550mm/1900mm
Vehicle weight	≤ 2000kg	≤ 2500kg
Lifting height	2000mm
Drive mode	Hydraulic
Operation mode	Button/Remote control (optional)
Surface treatment	Powder coating
Control power	24v
Voltage	220 V,50 Hz, 1 phase/380 V, 3 phase, 50 Hz (can be customized)
Motor power	2.2kw
