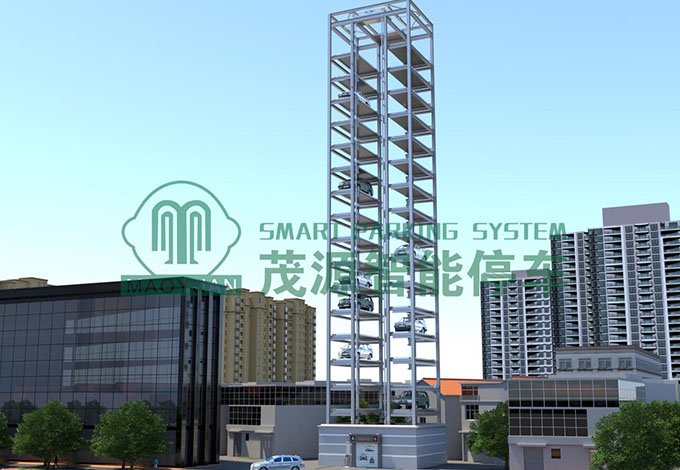

Robotic PPY parking system consists of entrance and exit, centering system, rotarysystem (designed according to project requirements),car lift, transport trolley, robotic carrier, comb frame, equipment body (concrete / steel structure), safety device and control system.

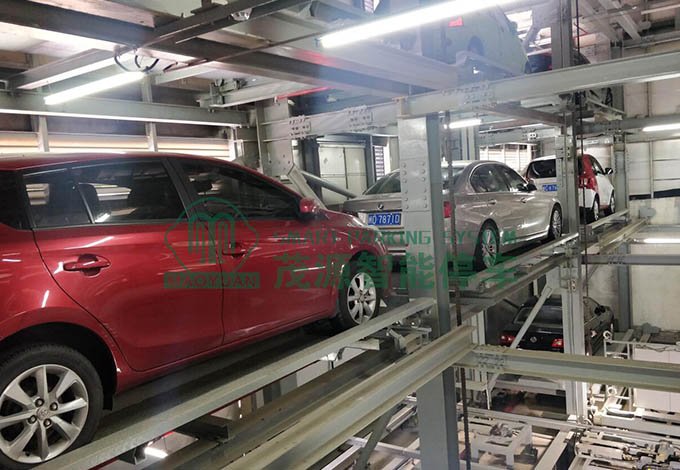

Pallet type PPY parking system consists of entrance and exit, centering system, rotarysystem (designed according to project requirements), car lift, friction arm transport trolley, pallet, equipment body (concrete / steel structure), safety device and control system.

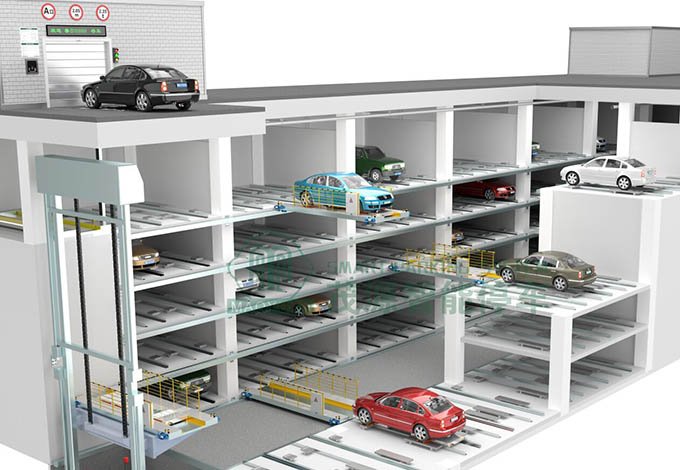

use the elevator to set up the transport trolley, the transport trolley moves horizontally in the car, the elevator can move vertically, and park the car in the corresponding parking space.

The equipment uses the elevaor to lift pallet to the designated floor, and then uses the horizontal movement mechanism installed on the elevator to send pallet to the parking space; Or the opposite, the pallet on the designated parking space is transferred by the horizontal movement mechanism to the lifting mechanism, and the elevator is lowered to the entrance.

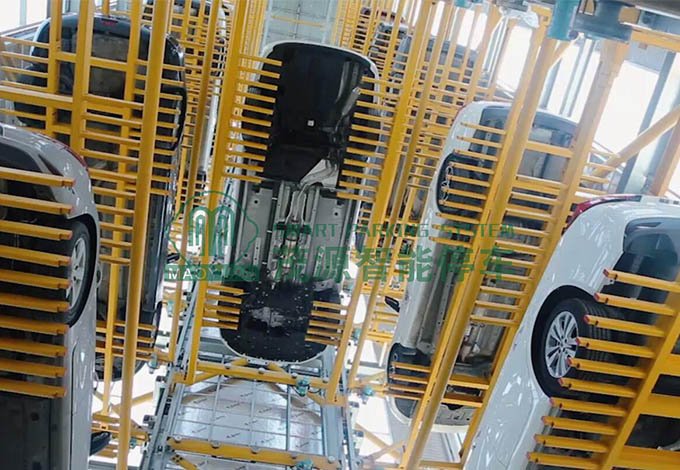

Using advanced comb tooth exchange technology, the vehicle is stored above the traverse comb rack, the traverse comb rack supports the tires of the vehicle through the outstretched comb teeth, The lifts comb teeth on the both left and right sides lift the vehicle through the backlash exchange to complete the exchange.
